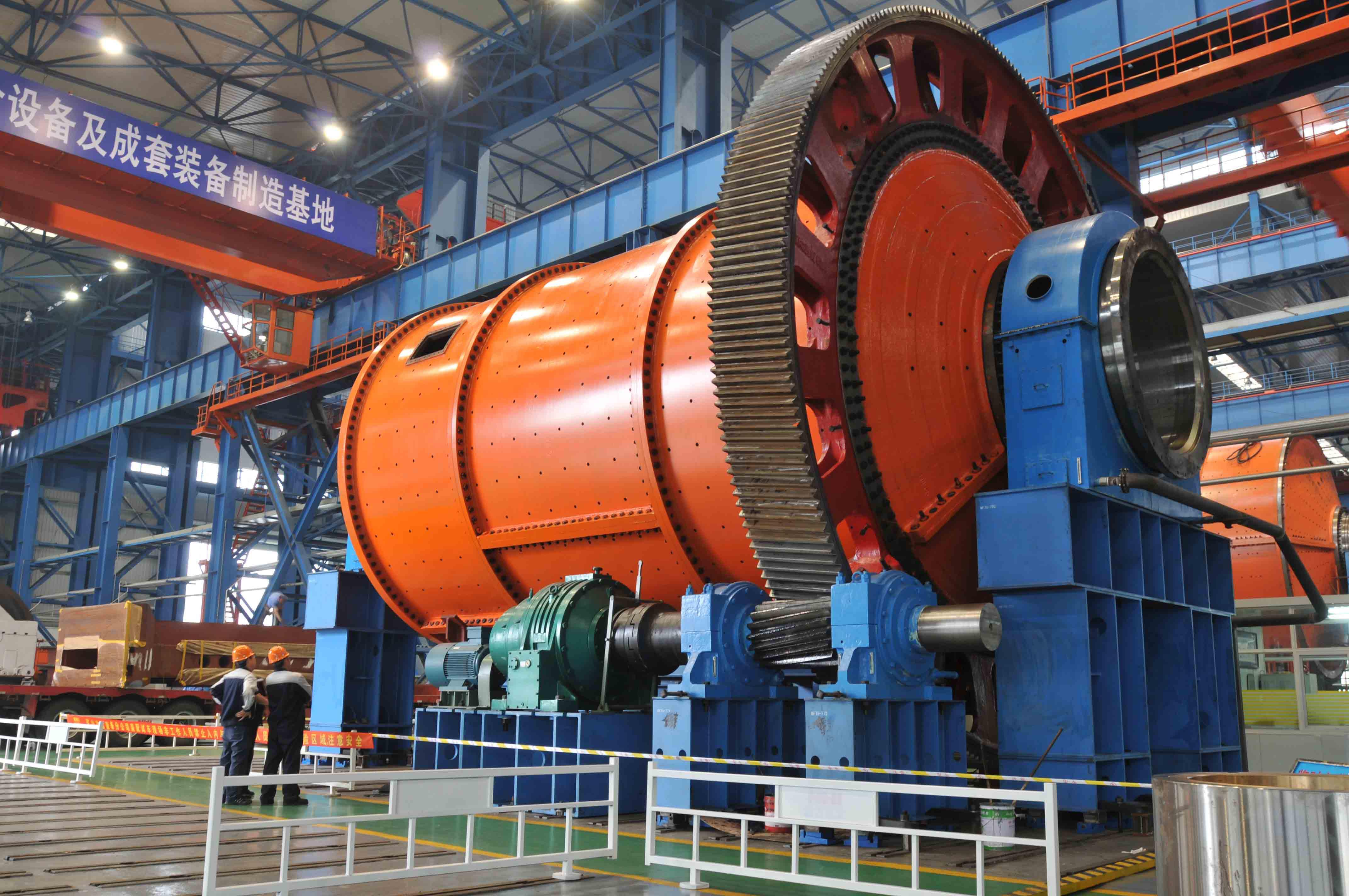

MQ球磨机
MQ Ball Mill
概述：该球磨机广泛应用于金属和非金属矿山、建材等行业粉磨各种矿石和岩石，该磨机具有效率高、能耗低、寿命长的特点。
General Description:
Ball mill is widely used for grinding various ores or rocks in metal and non-metal mining as well as construction industry. It has the added advantages of high efficiency, low energy consumption and long equipment lifespan.
设备选型参数表
Equipment Specifications
MQS湿式格子型球磨机
MQS Wet Grid Ball Mill
|
型 号 Type |
MQS 2122 |
MQS 2130 |
MQS 2721 |
MQS 2727 |
MQS 2736 |
MQS 3230 |
MQS 3236 |
MQS 3245 |
MQS 3639 |
MQS 3645 |
|
|
筒体直径Casing Dia. (mm) |
φ2100 |
φ2700 |
φ3200 |
φ3600 |
|||||||
|
筒体长度Casing Length (mm) |
2200 |
3000 |
2100 |
2700 |
3600 |
3000 |
3600 |
4500 |
3900 |
4500 |
|
|
旋转方向 Rotating Direction |
Left or Right |
||||||||||
|
介质装入量 Medium Weight (t) |
15 |
20 |
23 |
29 |
39 |
46 |
58 |
65 |
75 |
90 |
|
|
产量Output(t/h) |
按工艺条件定 Decided by process condition |
||||||||||
|
主电机Main Motor |
功率Power (Kw) |
155 |
210 |
260 |
310 |
400 |
500 |
630 |
800 |
1000 |
1250 |
|
转速 Speed (rpm) |
730 |
735 |
735 |
735 |
187.5 |
167 |
167 |
167 |
167 |
150 |
|
|
电压Voltage (V) |
380 |
380 |
3000 |
3000 |
6000 |
6000 |
6000 |
6000 |
6000 |
6000 |
|
|
机器外形尺寸 Overall Size |
长 L(mm) |
8000 |
8800 |
9280 |
9900 |
11900 |
13700 |
14300 |
16100 |
15100 |
15200 |
|
宽 W(mm) |
4700 |
4700 |
5500 |
5500 |
5700 |
6760 |
6760 |
6800 |
7200 |
7250 |
|
|
高 H(mm) |
4400 |
4400 |
4500 |
4400 |
7700 |
5100 |
5200 |
5200 |
6300 |
6300 |
|
MQY溢流型球磨机
MQY Overflow Ball Mill
|
型 号 Type |
MQY 2130 |
MQY 2136 |
MQY 2736 |
MQY 2740 |
MQY 3245 |
MQY 3254 |
MQY 3645 |
MQY 3650 |
MQY 3660 |
||
|
筒体直径Casing Dia. (mm) |
φ2100 |
φ2700 |
φ3200 |
φ3600 |
|||||||
|
筒体长度Casing Length (mm) |
3000 |
3600 |
3600 |
4000 |
4500 |
5400 |
4500 |
5000 |
6000 |
||
|
旋转方向 Rotating Direction |
Left or Right |
||||||||||
|
介质装入量 Medium Weight (t) |
18 |
20 |
39 |
38 |
61 |
73 |
76 |
86 |
102 |
||
|
产量Output (t/h) |
按工艺条件定 Decided by process condition |
||||||||||
|
主电机Main Motor |
功率 Power (Kw) |
120 |
120 |
400 |
`400 |
630 |
1000 |
1000 |
1250 |
1250 |
|
|
转速 Speed (rpm) |
735 |
735 |
187.5 |
187.5 |
167 |
167 |
167 |
150 |
150 |
||
|
电压Voltage (V) |
380 |
380 |
6000 |
6000 |
6000 |
6000 |
6000 |
6000 |
6000 |
||
|
机器外 形尺寸 Overall Size |
长 L (mm) |
8800 |
9300 |
11400 |
11850 |
14600 |
15800 |
15000 |
171570 |
17000 |
|
|
宽 W (mm) |
4700 |
4700 |
5700 |
5667 |
6700 |
6700 |
7200 |
7752 |
7700 |
||
|
高 H (mm) |
4400 |
4400 |
4500 |
4496 |
5200 |
5100 |
6300 |
6326 |
6300 |
||
