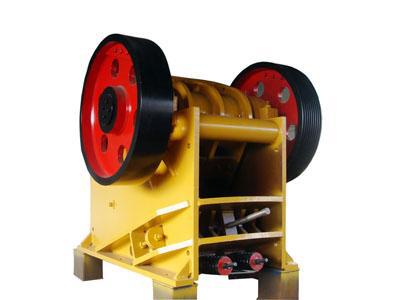

PEF颚式破碎机
PEF Jaw Crusher
概述：PEF颚式破碎机是一种用途极为广泛的破碎设备，具有结构简单、性能可靠、操作容易、维修方便、使用安全等优点，PEF复摆颚式破碎机适用于粗、中碎抗压强度250MPa以下的各种矿石和岩石。且特别适用于破碎各种坚硬的磨蚀性强的石料。
General Description:
PEF Jaw Crusher is one of the widely used crushing equipments. It has simple structure, feature of reliable performance, convenient maintenance and safe use, etc. Single-toggle jaw crusher is applied in coarse and intermediate crushing with various ores and rocks whose compressive strength is less than 250MPa, particularly for various hard stones with strong wearing resistance.
设备选型参数表
Equipment Specifications
|
型 号 Type |
PEF 0204 |
PEF-X 0207 |
PEF-X 0210 |
PEF 0406 |
PEF 0507 |
PEF 0609 |
PEF 0710 |
PEF 0912 |
||
|
进料口尺寸 Inlet Size |
宽 Width (mm) |
250 |
250 |
250 |
400 |
500 |
600 |
750 |
900 |
|
|
长 Length (mm) |
400 |
750 |
1050 |
600 |
750 |
900 |
1060 |
1200 |
||
|
推荐最大给料尺寸Recommended Inlet Size Max. (mm) |
210 |
210 |
210 |
340 |
400 |
500 |
630 |
750 |
||
|
开边排料口宽度 Output Size |
公称尺寸 Nominal Size (mm) |
40 |
40 |
40 |
60 |
75 |
100 |
110 |
130 |
|
|
调整范围 Adjusting Range (mm) |
±20 |
±20 |
±20 |
±30 |
±25 |
±25 |
±30 |
±35 |
||
|
排料口为公称时产量 Output at Nominal Size (t/h) |
10 |
20 |
32 |
18 |
40.5 |
60 |
110 |
180 |
||
|
主电机Main Motor |
功率 Power (Kw) |
15 |
30 |
45 |
30 |
55 |
75 |
90 |
110 |
|
|
转速 Speed (rpm) |
970 |
980 |
980 |
980 |
985 |
730 |
972 |
730 |
||
|
电压 Voltage (V) |
380 |
380 |
380 |
380 |
380 |
380 |
380 |
380 |
||
|
机器外形尺寸Overall Size |
长 Length (mm) |
1033 |
1482 |
1482 |
1560 |
1960 |
2085 |
2730 |
3180 |
|
|
宽 Width (mm) |
1016 |
1914 |
2342 |
1742 |
1940 |
2280 |
2760 |
3026 |
||
|
高 Height (mm) |
1140 |
1516 |
1535 |
1593 |
2205 |
2373 |
2820 |
3280 |
||
