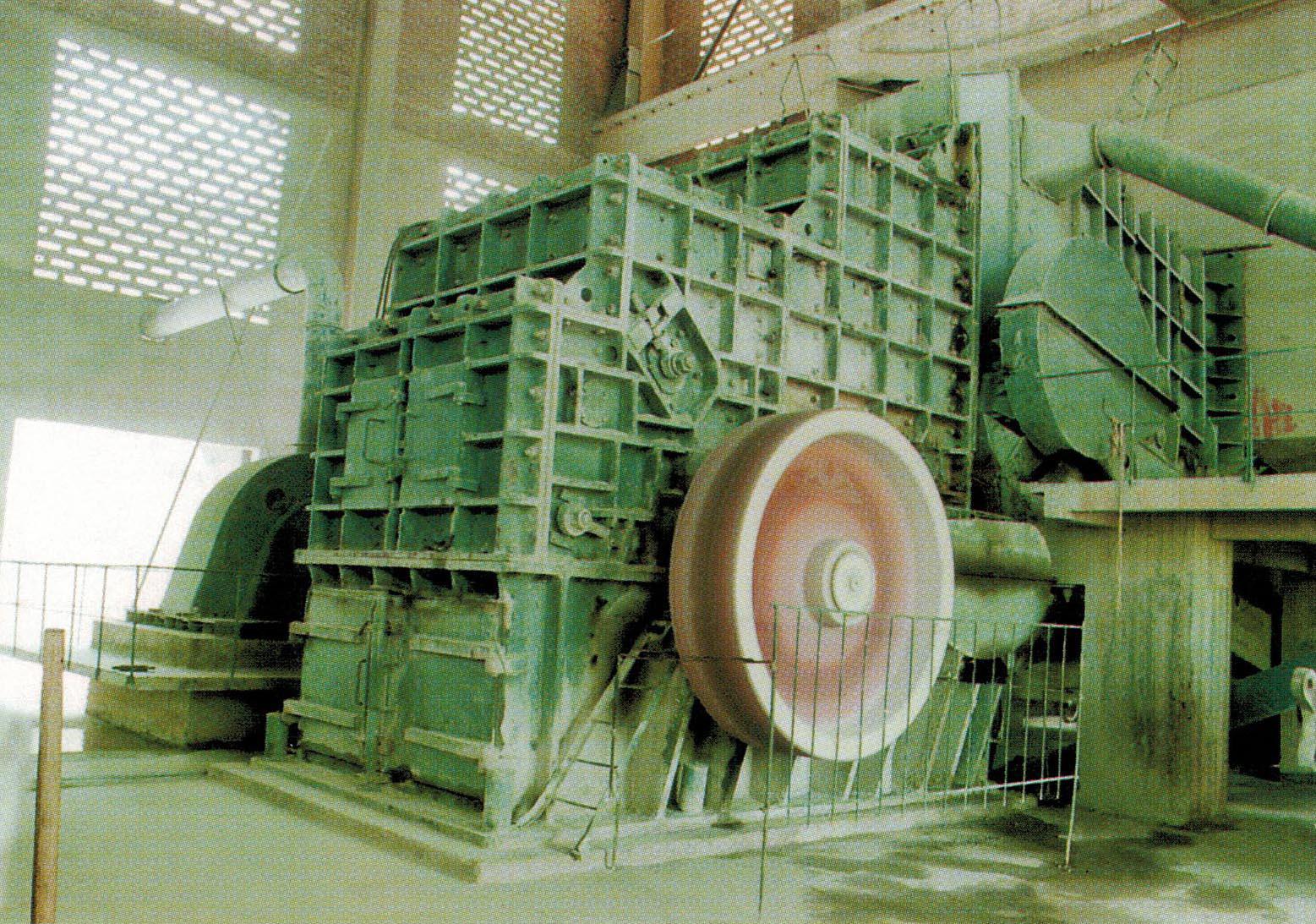

锤式破碎机
Hammer Crusher
概述：锤式破碎机是冶金、建材、化工和水电等行业中细碎石灰石、煤或其它中等硬度以下脆性物料的主要设备，具有破碎比大、生产能力高、产品粒度均匀等特点。
General Description:
The hammer crusher is one of the majorequipments used in crushing various brittle medium to low hardness materials such as stone, limestone, coal, coke, granite, oxide, iron ore, etc. It’s widely used in metallurgical and chemical industries, construction sectors, and hydroelectric power stations with the advantages of high crushing ratio and even grain size.
设备选型参数表
Equipment Specifications
|
规格型号 Type |
转子直径 Rotor Dia. (mm) |
转子长度 Rotor Length (mm) |
入料粒度 Fed Material Size (mm) |
出料粒度 Discharged Material Size (mm) |
主电机 Main Motor |
产量 Capacity （t/h） |
||
|
功率 Power （Kw） |
转速 Speed （rpm） |
电压 Voltage （V） |
||||||
|
PCY-S2020 |
2000 |
2000 |
≤1100 |
≤25 |
630 |
370 |
6000 |
300~400 |
|
PCY-S2030 |
2000 |
3000 |
≤1100 |
≤80 |
1000 |
370 |
3000 |
700 |
|
PC-S1618 |
1600 |
1800 |
≤120 |
≤6 |
560 |
595 |
6000 |
300 |
|
PC-S1616 |
1600 |
1600 |
≤350 |
≤20 |
480 |
595 |
6000 |
250 |
|
PC-S1414 |
1400 |
1400 |
≤250 |
≤20 |
280 |
740 |
6000 |
170 |
|
PC-S1212 |
1250 |
1250 |
≤200 |
≤20 |
180 |
740 |
380 |
100 |
|
PC-S0808 |
800 |
800 |
≤120 |
≤15 |
75 |
990 |
380 |
35~45 |
|
PC-M1825 |
1800 |
2500 |
≤300 |
≤25 |
800 |
595 |
6000 |
700~750 |
|
PC-M1818 |
1800 |
1800 |
≤300 |
≤40 |
480 |
595 |
6000 |
500 |
|
PC-M1316 |
1300 |
1600 |
≤300 |
≤10 |
200 |
740 |
6000 |
150~200 |
|
PCK1413 |
1430 |
1300 |
≤80 |
≤3 |
380 |
740 |
6000 |
200 |
|
PCK1416 |
1410 |
1608 |
≤80 |
≤3 |
560 |
990 |
6000 |
400 |
|
PCK1212 |
1250 |
1250 |
≤100 |
≤6 |
320 |
740 |
6000 |
150~200 |
|
PCK-M1010 |
1000 |
1000 |
≤80 |
≤3 |
280 |
990 |
6000 |
100~150 |
|
PF-M1415 |
1400 |
1500 |
≤300 |
≤25 |
380 |
740 |
380 |
300 |
|
PF-S1212 |
1250 |
1250 |
≤700 |
≤20 |
210 |
740 |
380 |
80~150 |
|
PF1007 |
1000 |
700 |
≤200 |
≤30 |
37 |
970 |
380 |
15~30 |
|
PF-M0807 |
850 |
750 |
≤100 |
≤40 |
22 |
970 |
380 |
25 |
|
PF-M0705 |
750 |
500 |
≤80 |
≤3 |
30 |
1470 |
380 |
20 |
