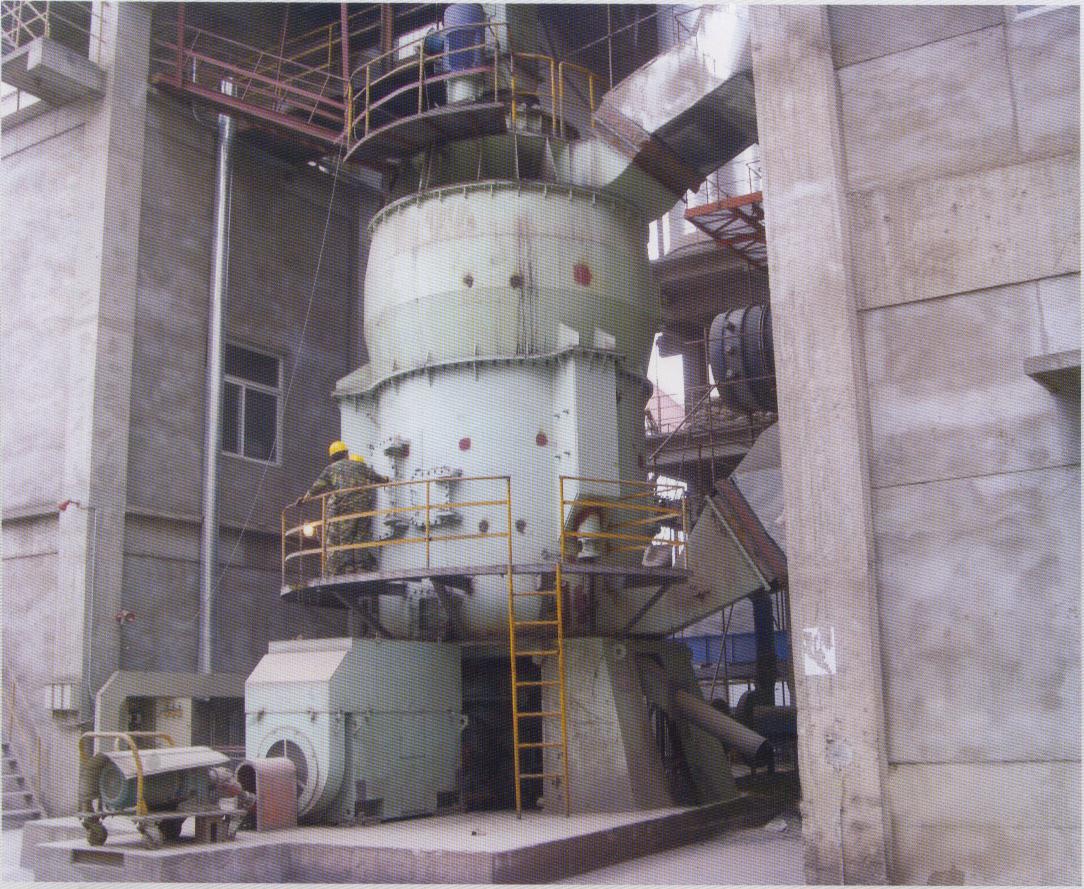

MPF辊盘式磨煤机
MPF Coal Mill (Middle Speed Mill)
概述：MPF(MPS)型辊盘式磨煤机（中速磨煤机）是一种高效节能型磨机，具有煤种适用性广、碾磨效率高、电耗低、寿命长、安全可靠、操作检修方便等优点，广泛用于钢铁、电力、冶金、建材等行业的煤粉制备系统。
General Description:
MPF (MPS) Coal Mill (Middle Speed Mill) is a kind of high efficiency, energy-saving mill which has the advantage of wide adaptability for coal types, high efficiency for milling, low energy consumption, long lifespan, safe and reliable, easy operation and maintenance, etc which is mainly used in milling systems for power stations, metallurgy, construction material industries.
设备选型参数表
Equipment Specifications
|
型 号 Type |
MPF1410 |
MPF1512 |
MPF1612 |
MPF1713 |
MPF1915 |
MPF2015 |
MPF2116 |
MPF2217 |
|
|
基本出力 Basic Output (t/h) |
HGI=50 Mt=10% R90=20% |
15.53 |
18.44 |
21.68 |
25.24 |
34.04 |
38.86 |
43.81 |
50.86 |
|
HGI=80 Mf=4% R90=16% |
24 |
28.5 |
33.5 |
39.0 |
52.6 |
58.5 |
67.6 |
78.7 |
|
|
一次风量 One Blast (Kg/s) |
7.73 |
9.10 |
10.70 |
12.46 |
16.75 |
18.55 |
21.65 |
24.74 |
|
|
磨盘工作直径 Grinding Disc Dia. (mm) |
1400 |
1500 |
1600 |
1700 |
1900 |
2000 |
2120 |
2250 |
|
|
磨辊直径 Roller Dia. (mm) |
1090 |
1170 |
1240 |
1320 |
1480 |
1550 |
1650 |
1750 |
|
|
磨辊宽度 Roller Width (mm) |
370 |
360 |
380 |
410 |
450 |
480 |
510 |
540 |
|
|
电动机功率 Motor Power (Kw) |
210 |
220 |
280 |
355 |
450 |
500 |
560 |
630 |
|
|
磨盘转速 Disc Speed (r/min) |
30.59 |
29.6 |
28.7 |
27.8 |
26.4 |
25.6 |
24.8 |
24.8 |
|
|
磨机+分离器阻力 Resistance of Mill+Separator (Pa) |
5170 |
5420 |
5700 |
5980 |
6380 |
6570 |
6770 |
6970 |
|
注：1. 煤粉细度R90≤12%时，建议采用SLS组合式旋转分离器。
2. 基本出力HGI=80,Mf=4%,R90=16%为企业标准选型计算时在规定煤种下的基本出力。
Note: 1. SLS combined rotating separator is recommended for coal fineness R90≤12%,.
2. The calculated settings for a specific coal of basic output is HGI=80 and Mf=4%,R90=16%
